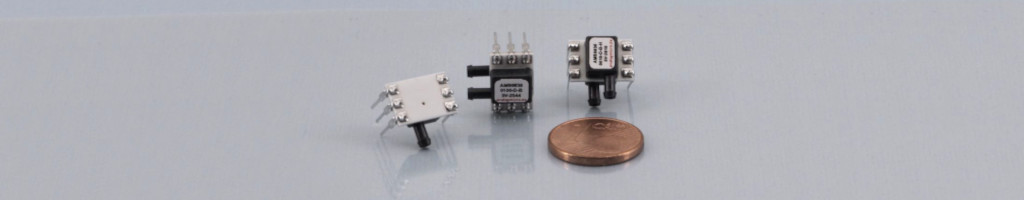

AMS 6836 is a series of the precise, board-mountable pressure sensors. The AMS 6836 series have an amplified, ratiometric voltage output (0.5 ... 4.5 V at VS = 5 V). The AMS 6836 are extensively calibrated, linearized and temperature compensated and feature an excellent long term stability, high precision at room temperature and a small total error band (TEB) in a temperature range of -25 °C .. 60 °C. Due to their compact DIL-package the sensors are especially suitable for applications, where an intensive miniaturization is and a direct integration on printed circuit boards is required. The pressure sensor series AMS 6836 comprises differential pressure sensors, relative pressure sensors and absolute pressure sensors in pressure ranges from 0 ... 2.5 mbar up to 0 ... 2 bar. |
