AM467 - Ratiometric High Precision Amplifier IC

OverviewDetailsAccessoriesDocumentsInquiry / Samples

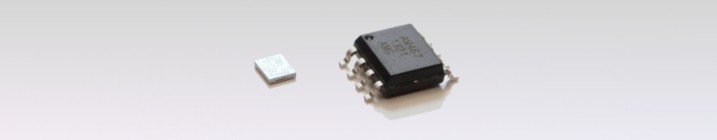

Package variants of the voltage amplifier IC AM467
AM467 is a low-cost, ratiometric amplifier IC with adjustable rail-to-rail output stage. With its low offset, low temperature coefficients and high temperature operating range the analog IC is especially suitable for the signal-conditioning of ceramic pressure sensors in automotive applications.


  • Sensor signal-conditioner
  • Ceramic pressure sensors
  • DMS measurement
  • Automotive amplifier
  • Rail-to-rail amplifier

Short Specifications

Supply Voltage (VCC)

5 V ± 5%

Input voltage range

0 .. ±5 mV up to 0 .. ±100 mV (differential)

Voltage output

e.g. 0.5 .. 4.5 V (ratiometric), adjustable

Temperature range

-40 °C .. 125 °C

Protection functions

Short circuit protection

Package / Delivery forms

SO8, on DIL8-adapter, sawn 6″ wafer on blue foil
