AMS 6915 - Mini OEM Pressure Sensor with Digital Output (I2C)

OverviewPressure RangesAccessoriesDocumentsInquiry / Samples

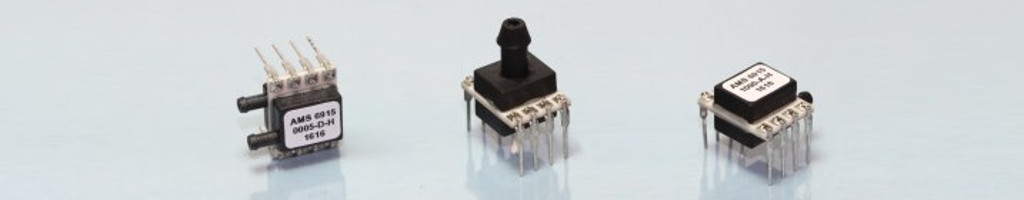

Different types of the digital OEM pressure sensor series AMS 6915 with I2C output.
AMS 6915 is a series of board mountable digital pressure sensors in a compact DIL package with horizontal or vertical tube fittings. The calibrated and temperature compensated sensors with I2C-interface have an operating temperature range of -25 .. 85 °C and are especially suitable for microcontroller applications. Ultra low pressure variants are available for differential pressure measurements down to +-2.5 mbar.

Short Specifications

Pressure Ranges*

bidirectional differential:

-2.5 .. 2.5 mbar --> -1000 .. 1000 mbar

differential / gage:

 0 .. 5 mbar --> 0 .. 2500 mbar

absolute:

 0 .. 500 mbar -->0 .. 2000 mbar

barometric:

 700 .. 1200 mbar

Total Error Band (TEB)
(T = 0 °C .. 60 °C)

2.0 %FSO (max.)

for ultra low pressure ranges (≤ 10 mbar)

1.5 %FSO (max.)

for low pressure ranges (≤ 100 mbar)

1.0 %FSO (max.)

for standard pressure ranges (> 100 mbar)

Digital Output Signal
(pressure and temperature)

1638 .. 14745 Counts
256 .. 1382 Counts

for pressure
for temperature

Supply Voltage (VS)

3.0 .. 3.6 V (typ. 3.3 V) or 4.75 .. 5.25 V (type. 5.0 V)

Package

ceramic DIP-8 (width: 0.6 mil)

*For detailed information on the pressure ranges in PSI and mbar please see "Pressure Ranges".
