AMS 4710/11 - Industrial Pressure Transmitter

OverviewPressure RangesAccessoriesDocumentsInquiry / Samples

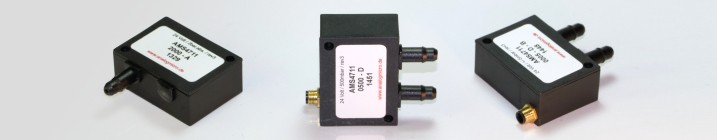

Different types of the pressure transmitter series AMS 4710/11 with analog voltage output.
AMS 4710/11 is a series of miniaturized pressure transmitters suitable for industrial applications and high precision measurement. The transmitters are calibrated and temperature compensated in a wide temperature range of -25 .. 85 °C, provide an amplified analog output voltage and are dust- and water-tight (IP67).

Short Specifications

Pressure Ranges*

bidirectional differential:

-5 .. 5 mbar --> -1000 .. 1000 mbar

differential / gage:

 0 .. 5 mbar --> 0 .. 2000 mbar

absolute:

 0 .. 1000 mbar --> 0 .. 2000 mbar

barometric:

 700 .. 1200 mbar

Total Error Band (TEB)
(T = -25 °C .. 85 °C)

2.5 %FSO (max.)

for ultra low pressure ranges (≤ 10 mbar)

2.0 %FSO (max.)

for low pressure ranges (≤ 100 mbar)

1.5 %FSO (max.)

for standard pressure ranges (> 100 mbar)

Output Voltage

0 .. 5/10 V

Supply Voltage

8/12 .. 36 V

*For detailed information on the pressure ranges in PSI and mbar please see "Pressure Ranges".
